D Grade Steel Solid Type Sucker Rods Corrosion Resistant 4330 Alloy Steel Oil Field Rods

Puyang Zhongshi Group Co., Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

D Grade Steel Solid Type Sucker Rods Corrosion Resistant 4330 Alloy Steel Oil Field Rods

Brand Name : Zhongshi

Model Number : sucker rod

Certification : API ,ISO ,QHSE

Place of Origin : China

MOQ : 1

Price : Negotiable

Payment Terms : T/T

Supply Ability : 1000pcs

Delivery Time : 2weeks

Packaging Details : exported packing

Product name : Alloy Steel Sucker Rod

Grade : D,KD,HY,K,HL

Standard : API 11B

Size : 3/4",1",5/8"-1-1/8"

Length : 25-30ft

Package : Bundle as per API 11B standard

Contact Now

Sucker Rod Introduction:

The sucker rod is a steel rod that used to make up the mechanical assembly between the surface and downhole components of a rod pumping system.
The product conforms to API Specification 11B (Oil extraction rod Standard) and other related standard, authorized to use the API monogram.
All sizes of sucker rod (standard, heavy, polish rod) which conform to API specification latest version 11B are available in grade K, C, D and HL.

Size

in (mm)

Rod Body diameter in (mm) diameter of ext. thread
in (mm)
Full size Coupling OD mm (in)

Coupling

OD mm (in)

Wrench square W*L mm (in) Length series m (ft)
5/8 (16) 5/8 (15.88) 15/16 (23.81) 38.10(1.5) 31.8 (1.25) 22.2×31.8 (7/8×1-1/4) 7.62 (25)
3/4 (19) 3/4 (19.05) 1-1/16(26.99) 41.28(1.625) 38.1 (1.5) 25.4×31.8 (1×1-1/4) 9.14 (30)
7/8 (22) 7/8 (22.23) 1-3/16 (30.16) 46.0(1.812) 41.3 (1.625) 25.4×31.8 (1×1-1/4) 0.6 (2), 1 (3)
1 (25) 1 (25.40) 1-3/8 (34.93) 55.6(2.187) 50.8 (2) 33.3×38.1(1-5/16×1-1/2) 2 (6), 3 (10)
1-1/8 (28) 1-1/8 (28.58) 1-9/16 (39.7) 60.33(2.375) 57.2 (2.25) 38.1×41.3 (1-1/2×1-5/8)

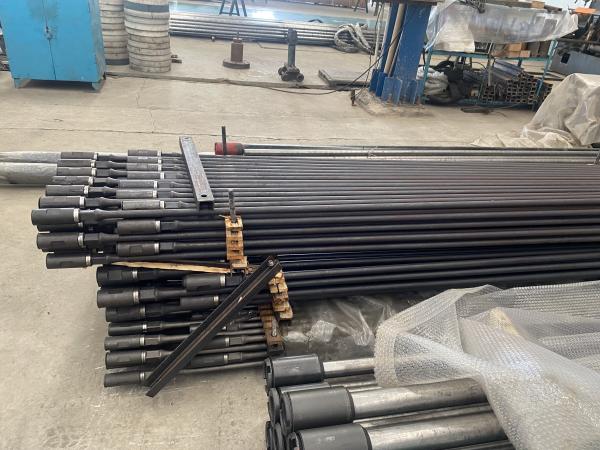

D Grade Steel Solid Type Sucker Rods Corrosion Resistant 4330 Alloy Steel Oil Field Rods

Mechanical Properties of Sucker Rods:

Grade

Min Yield strength 0.2%

offset M Pa (psi)

Tensile strength
M Pa (psi)

Elongation

δ%

Reduction of area ψ%
K 414 (60, 000) 621-793(90, 000-115, 000) ≥13 ≥60
C 414 (60, 000) 621-793(90, 000-115, 000) ≥13 ≥50
D 586 (84, 970) 793-965 (114, 985-139, 925) ≥10 ≥50
KD 590(85, 000) 793-965 (114, 985-139, 925) ≥10 ≥50
HL 795(115,000) 965-1,195(140,000-173,339) ≥10 ≥45
HY 540 (78, 300) 965-1,195(140,000-173,339) ≥42 ≥224
