1045 Steel Metal Well Pump Tubing Mechanical Seating Large Bore Cup

Brand Name : Zhongshi

Model Number : Tubing pump

Certification : API, ISO, QHSE

Place of Origin : China

MOQ : 1 set

Price : Negotiable

Payment Terms : L/C, D/P, T/T, Western Union, D/A

Supply Ability : 1000 SETS/MONTH

Delivery Time : 10~15 workdays

Packaging Details : Standard exported packing

Used well type : Large production well

Seating type 1 : Cup seating

Seating type 2 : Mechanical seating

Barrel connection type : connected with tubing string

Plunger coating : Spray metal

Plunger material : AISI 1045 steel

Contact Now

Large Bore Cup And Mechanical Seating Well Tubing Pump

Large bore cup and mechanical seating tubing pump description:

For the large bore tubing pump, the barrel is put in the well to the designed depth with tubing.

Tubing pump seating type is divided into mechanical seanting and cup seating.

The pump barrel assembly of the tubing pump connected on the tubing string,and with its down to the bottom of the well.Plunger assembly connected on the sucker rod string and with it down to the pump barrel position in the well,then with it do up and down reciprocating motion, so as to realize the production process.

Features


1. Tubing pump barrel is connected on the tubing string.
2. Tubing pump is used in the large production oil wells.

THM model API parameters table

THM model OD of pump (in) Barrel length(ft) Plunger length(ft) stroke length(ft)

Tubing size

EUE(in)
20-175THM Ø44.45 7-34 1-26 4-29 2 3/8"
25-225THM Ø57.15 2 7/8"
30-275THM Ø69.85 3 1/2"
40-375THM Ø95.25 4 1/2"

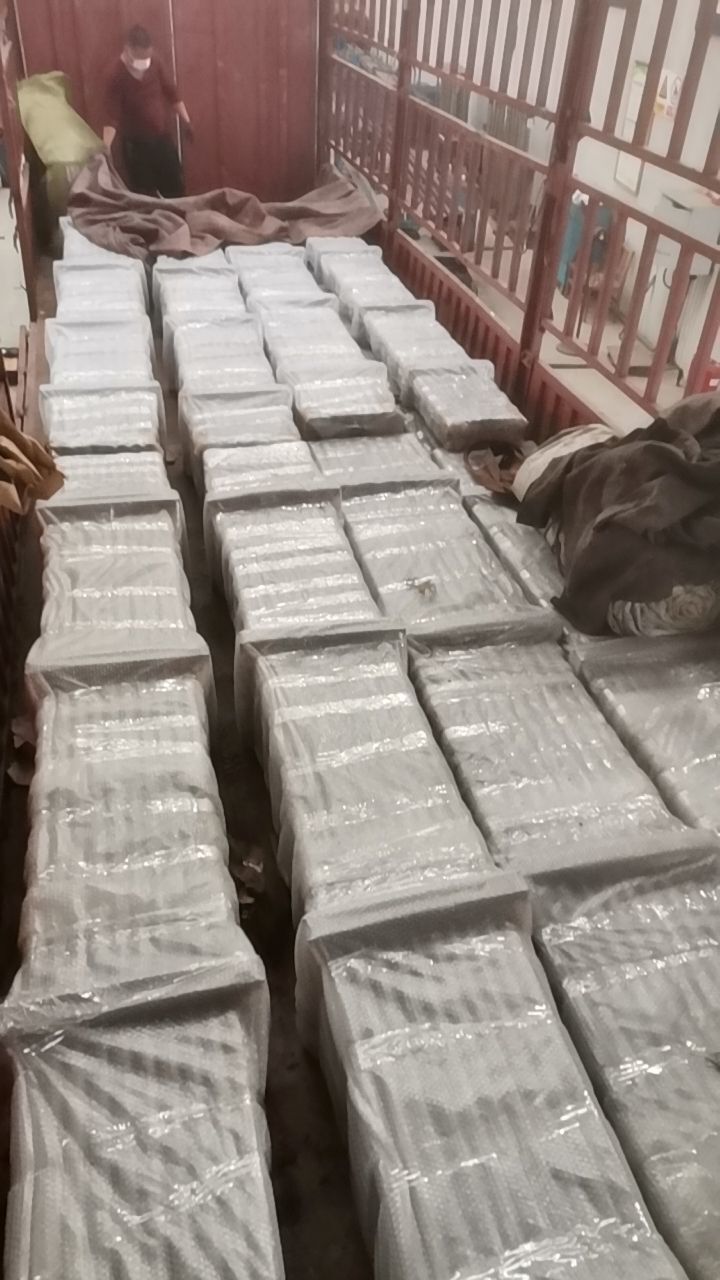

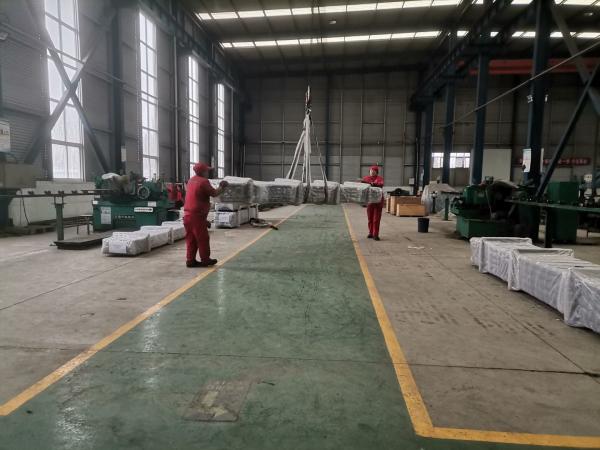

Packed tubing pump is delivered:
